PRODUCT DESCRIPTION

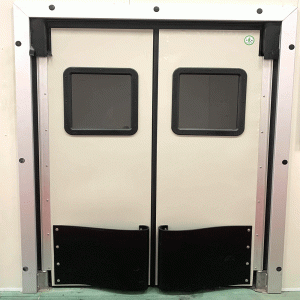

Swing door is one of most popular door type for cold room, half of the door body into the door frame, which optimizes the use of space and improves the thermal insulation performance of the door. lt has the most superior sealing and thermal insulation properties.
- For positive temperature (-5°C min) and negative temperatures (up to -45)
- Blade thickness 50/100/150/200 mm
- Polyurethane density 42 Kg/m³
- Steel plate option: stainless steel, color steel plate, etc
- Door size option: 0.8×1.8m, 0.9×1.9m, 1x2m, 1.2x2m, 2x2m, etc
- Available in one blade or two blades versions
APPLICATIONS
Suitable for cold rooms used for the preservation of foods at a temperature up to –45°C
Mainly used in meat processing plants, cheese factories, warehouses to preserve fruit and vegetables, slaughters, trade centres, shops (delicatessens, fish shops, dairies, ice-cream parlours …), fish processing plants, ice-creams industry.
Sealing strip
Flexible plastic has built-in magnetic strip, which can well compensate for the slight errors caused by manufacturing and has good sealing performance.
Door panel
Plastic profile and panel are combined into a shell, and the internal polyurethane foam is formed, without cold bridge and good thermal insulation performance.
Panel material: stainless steel, color steel plate, embossed aluminum plate.
Door frame
Aluminum alloy profile and warehouse board are spliced and connected on site, which is easy to install. It is especially suitable for maintenance occasions where only the door is replaced, and has excellent thermal insulation performance. Equipped with self-limiting temperature electric belt, no temperature control or manual power switching is required.
Door lock
CT1178 door lock, domestic or imported for your choice.
